Intel Core 2 Quad Q9300 Tested - TechAmok
Intel Core 2 Quad Q9300 Tested - [hardware] 06:33 PM EDT - Jul,22 2008 - post a comment
OCC
has published a new review on the Intel Core 2 Quad Q9300. As the lowest
speed rated 45nm Quad core Yorkfield processor, the Q9300 has some big shoes to
fill. It features a 1333MHz bus speed running with a 7.5 clock multiplier to
give a final clock speed of 2.5GHz, just slightly higher than the 65nm Q6600 and
166MHz slower than the Q9450. What it does not share with the rest of the family
is the 3MB of L2 cache per core of the Q9450 up to the QX9770. It only has 1.5MB
of L2 cache per core for a total of 6MB versus 12MB or even the 8MB on the
Q6600.
As a comparison to the existing quad core Intel CPUs, there really is not
much of a comparison. The Q9300 just barely performs better than the Q6600 in
the comparison field of processors. In many ways, it is handicapped by the lower
amount of L2 cache it is equipped with. The clock speed does not in all
instances make up for this lack of cache. Don't get me wrong here, in many of
the benchmarks the Q9300 was competitive, it just did not have enough to get it
to that next level of performance. The processor would do all that it was
required to do and did so without any stutters or lag. So the actual "feel" of
the chip in operation was really no different than the Q6600 or Q9450. This is
where the majority of users will have their experience with this chip. But is
this feel worth about $85 dollars more than the bargain Q6600 at $184? Probably

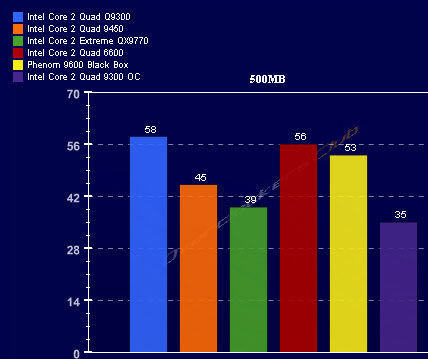

not. In the system based tests, the Q9300 performed better than the Q6600 in
only 13 out of 35 tests, performed worse in 10 and performed equally in 12. Not
really much of an improvement. The Q9450 and Q9770 each out performed it, so
there was no real performance comparison there. In the gaming tests, the Q9300
lost slightly more than it won when compared directly with the Q6600 and Phenom.
It outperformed them in 11 tests, lost 16 and equaled the performance in five.
Not exactly stellar, but not a total loss either. This was most likely due to
the higher bus speed on the CPU as well as the clock speed.
When overclocking the Q9300, I was stoked when it went to 450 x 7.5 FSB on stock
volts (1.215). My excitement was short lived though, as I could only manage to
reach 456 x 7.5 (3420MHz), the lowest overclock I have achieved on any of the
quad core CPUs I have tested. Dropping the clock multiplier, increasing the
volts, tweaking skew levels, nothing would get it stable any higher. However, at
this point 1.31 volts were required for Prime 95 stability. The level of voltage
required for the maximum overclock brought a little of the excitement back. Just
like its faster brothers, this chip gets hot when the voltage is pushed. After
three mounts with the CPU heatsink, temperatures at the 1.31 volt mark were in
the low 60s Celsius. This could very well be just a warped heatspreader that
needs some attention. If you want a 45nm quad core CPU but the price of the
Q9450 and Q9550 are just out of reach, then this would be a good option to go
with. Performance junkies might want to give this one a pass as 500+ FSB speeds
will be needed to get to the promised land due to the low clock multiplier. If a
45nm quad is not a requirement, then the Q6600 is still a better value for your
money.
|
|
