1GB 20 years ago and 1GB now! (pic)


Post new topic   Reply to topic    TechAmok Forum Index -> Off Topic
View previous topic :: View next topic
Author Message
admin
Site Admin
Site Admin


Joined: 28 Feb 2006
Posts: 902

PostPosted: Mon Sep 24, 2007 3:15 am    Post subject: 1GB 20 years ago and 1GB now! (pic) Reply with quote

It's amazing how quickly technology advances these days...
Back to top
View user's profile Send private message Send e-mail
russellg81
Contributor
Contributor


Joined: 17 Mar 2006
Posts: 11

PostPosted: Mon Sep 24, 2007 5:30 pm    Post subject: Reply with quote

Wow.. Surprised
Back to top
View user's profile Send private message
Conz0r
Guest





PostPosted: Mon Sep 24, 2007 7:50 pm    Post subject: Reply with quote

cablio wrote:
On the piece of paper it says
"IBM disk for great/big IBM systems
Capacity: 1GB"

Why are they showing this card tho? There are some smaller than that.



i think you know why they showed the card...come on man...not everyone can afford an inventory of memory sticks like you Shame on you
Back to top
richace
Guest





PostPosted: Tue Sep 25, 2007 6:42 pm    Post subject: Disk Drive Reply with quote

I'm prior Navy and this big piece of "junk" is the guts of a UYH-3 disk drive built by (I think) Univac. That rust colored round disk inside the casing consists of 5 plates (think todays disk drive super sized) and is removable. That way you can swap the program by swapping disks. It's over 40 years old and we still use these on some of our Naval ships. They (Navy) have replaced most but are still in the process of replacing them with newer disk drives that take up considerably less space and are easier to maintain and operate. And yes, it's very expensive to purchase and maintain.
Back to top
puseya
Guest





PostPosted: Thu Sep 27, 2007 5:00 pm    Post subject: wrong!!! Reply with quote

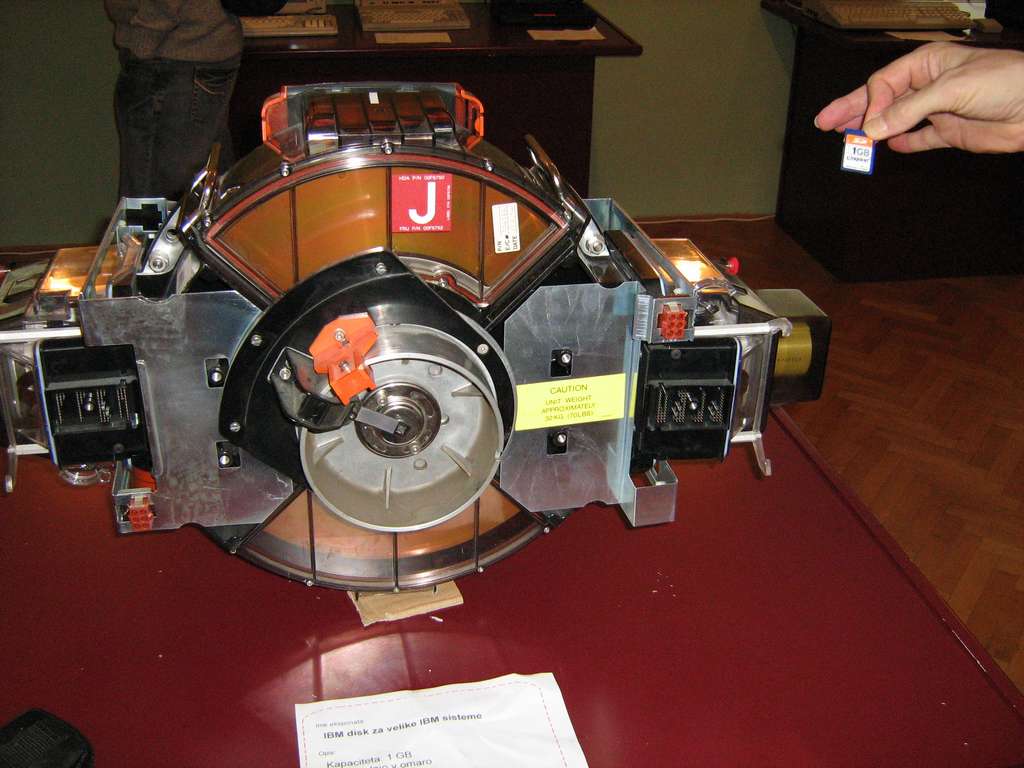

That is the hda assembly from an IBM 3380 disk drive circa late 80's early 90's. There were two in each cabinet and each hda had two heads (the lumps sticking out of each side). Each disk was approx 1.2Gb in size.

Unfortunately I can't remember if it is a fba or a count key device. I think it is count key and some of the earlier ones were fba.

I started work on IBM mainframes and had the pleasure of helping change them every now and then. The cabinet for this was the size of a large fridge and the controller for a string of these was of a similar size and still had a hard wire board where you could move the wires to change some of the functions.

These disks had another trick, there was blank space between the tracks that could be used to store data if the original track became unusable. I actually did the course on the disk maintenance utility for these and learnt hot to cause a predefined series of error by moving a wire on a hard wired controller card.

In their time they were blindingly fast. just imagine was sort of seek speeds you could get with two heads.

The biggest laugh is that IBM supplied a special key for these, it is basically an allen key with a proper key body. I still have mine from years ago and it is my lucky charm.

Now is you had a picture of an IBM 3330 or earlier then that would be a better example of low density storage. If you really wanted to be sick have a look for an old IBM core drum.
Back to top
jasonbush
Newbie
Newbie


Joined: 31 Jul 2019
Posts: 1

PostPosted: Wed Jul 31, 2019 3:59 am    Post subject: Reply with quote

Wow..
fnaf sister location
Back to top
View user's profile Send private message
GinaRobel
Newbie
Newbie


Joined: 16 Oct 2019
Posts: 1

PostPosted: Wed Oct 16, 2019 12:57 pm    Post subject: Reply with quote

Technology has developed so much and it keeos on advancing. I donít even know what to expect in future years but we can see it on https://jt.org/5-online-courses-for-technical-awareness/2019/. We have achieved so much and advanced so much in the field of technology, I donít know what will come next.
Back to top
View user's profile Send private message
KendallJacobs
Newbie
Newbie


Joined: 21 Oct 2019
Posts: 1

PostPosted: Mon Oct 21, 2019 2:17 am    Post subject: Reply with quote

I definitely agree, it is very amazing. I have read so manny posts on https://best-essay-writing.services/essayswriting-org-review/ about how technology brings changes. And they are very informative to read.
Back to top
View user's profile Send private message
